3D printing has transformed architectural model making. Complex geometries that once required hours of manual fabrication can now be produced directly from a digital file.
Yet walk into many architecture schools, design studios, or professional model shops, and you’ll still find laser cutters running every day.
Why?
Because architectural models aren’t simply miniature buildings. They’re tools for understanding space, proportion, structure, material, and design intent. And for many stages of the architectural process, laser-cut models remain faster, more flexible, and often more visually effective than fully 3D-printed models.
The two technologies aren’t necessarily competitors. In fact, many architects use both.
But when it comes to producing physical models for concept development, studio reviews, client presentations, and urban planning, laser cutting continues to offer some important advantages.
Architectural Models Are About More Than Geometry
A common assumption is that 3D printing should naturally replace laser cutting.
After all, architects already work with digital 3D models.
Why not simply send the entire building to a 3D printer?
The problem is that architectural model making isn’t always about reproducing every geometric detail.
Depending on the design stage, an architect may want to study:
- Massing
- Circulation
- Floor relationships
- Facade rhythm
- Structural systems
- Site context
- Light and shadow
- Material relationships
A simplified physical model can sometimes communicate these ideas more clearly than a highly detailed printed miniature.
Laser cutting gives architects control over how much information the model reveals.
1. Laser Cutting Is Fast for Iterative Design
Architecture is an iterative process.
A designer may change:
- Wall locations
- Floor layouts
- Window proportions
- Building footprints
- Facade patterns
several times during a project.
This makes fabrication speed important.
Imagine an architect preparing a 1:100 model.
Instead of printing the entire building as one object, the designer can export walls, floors, roofs, and facade panels as 2D cutting files.
The laser cuts the components.
The designer assembles them.
A design change might only require recutting one wall or one floor.
With a fully 3D-printed model, even a relatively small design change may require printing a much larger portion of the model again.
For early-stage design development, that flexibility matters.
2. Sheet Materials Naturally Match Architectural Construction
Architecture is fundamentally assembled from layers, planes, panels, and structural elements.
Laser cutting works particularly well with materials that represent these ideas physically.
Common architectural model materials include:
- Basswood
- Plywood
- MDF
- Chipboard
- Cardboard
- Paper
- Acrylic
- Model-making board
Each material creates a different visual language.
For example:
Basswood can create warm presentation models.
White board can keep attention focused on form rather than material.
Clear acrylic can represent glazing.
MDF can work well for terrain, structural studies, and massing models.
Instead of printing everything from the same plastic material, architects can combine multiple materials within one model.
3. Laser-Cut Models Make Material Relationships Easier to Read
Material contrast can communicate architectural ideas immediately.
Consider a presentation model containing:
- Timber walls
- Clear acrylic windows
- Dark landscape layers
- White structural elements
A viewer can understand different architectural systems without needing an explanation.
This is one reason laser-cut models often feel more architectural.
The physical materials themselves become part of the visual communication.
With 3D printing, achieving the same effect may require:
- Multiple materials
- Multiple prints
- Painting
- Surface finishing
- Additional assembly
Laser cutting allows designers to build material variation directly into the fabrication process.
4. Large Architectural Models Can Be More Practical to Laser Cut
Scale matters.
A small 3D-printed building may be easy to produce.
But consider a large site model showing:
- Several buildings
- Roads
- Landscaping
- Terrain
- Parking
- Public spaces
The footprint can become substantial.
Laser-cut architectural models can be constructed from relatively inexpensive sheets and assembled across a large base.
This is particularly useful for:
- Campus models
- Urban planning models
- Landscape architecture
- Masterplans
- Real estate presentations
Terrain can also be created by stacking laser-cut contour layers.
For example:
Contour 05
Contour 04
Contour 03
Contour 02
Contour 01
Base
Once stacked, the flat sheets create a three-dimensional landscape.
This technique is simple, readable, and highly effective for architectural presentations.
5. Laser Cutting Can Produce Extremely Clean Facades
Modern architecture often includes repetitive facade elements such as:
- Window grids
- Screens
- Louvers
- Perforated panels
- Brise-soleil
- Curtain wall patterns
These designs translate naturally into vector files.
A laser cutter can reproduce the pattern repeatedly across:
- Cardboard
- Wood
- Acrylic
- Suitable model-making materials
This allows architects to create detailed facade studies without manually cutting hundreds of openings.
Laser engraving can also add details without cutting completely through the material.
For example, architects can engrave:
- Brick patterns
- Panel joints
- Window frames
- Roof lines
- Pavement
- Site boundaries
- Structural grids
This combination of cutting and engraving makes the laser particularly useful for architectural model making.
6. Laser-Cut Models Are Easy to Modify by Hand
Architects rarely treat physical models as untouchable finished objects.
During design development, they may:
- Remove a wall
- Replace a facade
- Add another floor
- Test a different roof
- Move a building
- Change landscaping
Laser-cut models encourage this kind of experimentation.
Individual components can be removed and replaced.
For example, a designer might create three different facade options:
Facade A
Facade B
Facade C
Each version can fit onto the same structural model.
The physical model becomes an active design tool rather than simply a final representation.
7. Assembly Helps Designers Understand Construction
There is another advantage that is difficult to measure: building the model itself can reveal design problems.
When assembling:
- Walls
- Floors
- Roofs
- Structural elements
- Facades
designers are forced to think about how components relate physically.
Questions appear naturally:
Does this wall actually align with the floor above?
How does this roof meet the facade?
Is there enough structural depth?
Does this connection make sense?
Physical assembly can expose spatial relationships that are easy to overlook on a computer screen.
This is one reason model making remains an important part of architectural education.
8. Laser Cutting Works Well for Presentation Models
Client presentation models often need to communicate an idea quickly.
Too much detail can sometimes distract from the architecture.
Laser-cut models can use controlled abstraction.
For example:
- White walls
- Transparent windows
- Natural wood landscape
- Minimal engraved details
The result can feel intentionally architectural rather than simply miniature.
This visual clarity is especially useful when presenting:
- Residential developments
- Commercial buildings
- Public architecture
- Landscape projects
- Urban planning proposals
9. Laser Cutting Can Be Efficient for Architecture Schools
Architecture students produce a lot of models.
A single semester may involve:
- Site models
- Concept models
- Structural models
- Facade studies
- Midterm presentation models
- Final models
That means fabrication equipment needs to support frequent experimentation.
Laser cutters can process relatively inexpensive sheet materials such as cardboard and thin wood.
Students can quickly move from:
CAD drawing → laser cutting → physical model
without waiting for long print cycles.
This makes laser cutting particularly useful in:
- Architecture schools
- University fabrication labs
- Makerspaces
- Design departments
- Engineering programs
10. Laser Cutting and 3D Printing Actually Work Better Together
The most effective architectural fabrication workflow doesn’t necessarily choose one technology.
It combines them.
Consider an architectural model with:
Laser-cut components
- Floors
- Walls
- Facades
- Site contours
- Roads
- Landscape elements
3D-printed components
- Curved staircases
- Organic roofs
- Sculptural structures
- Complex joints
- Custom furniture
The result combines the strengths of both technologies.
Laser cutting handles planar geometry efficiently.
3D printing handles complex volumetric geometry.
For many architecture studios, this hybrid workflow is more practical than relying entirely on either technology.
Laser Cutting vs. 3D Printing for Architectural Models
| Application | Laser Cutting | 3D Printing |
| Walls and floors | Excellent | Good |
| Facade panels | Excellent | Good |
| Site contours | Excellent | Good |
| Large site models | Excellent | Can be slower |
| Complex curved geometry | Limited | Excellent |
| Organic structures | Limited | Excellent |
| Material variety | Excellent | Depends on printer |
| Quick design changes | Excellent | Good |
| Flat architectural components | Excellent | Good |
| Complex miniature objects | Limited | Excellent |
Rather than asking:
“Which technology is better?”
A better question is:
“Which fabrication method fits this part of the model?”
A Typical Laser-Cut Architectural Model Workflow
The process often begins in CAD or architectural design software.
Step 1: Prepare the Digital Model
The architect develops the design using software such as:
- AutoCAD
- Rhino
- Revit
- SketchUp
- Illustrator
Step 2: Convert Components Into 2D Profiles
Walls, floors, facades, and site contours are exported as vector geometry.
Step 3: Organize by Material
Files can be separated into:
- Cardboard
- Wood
- Acrylic
- Paper
Step 4: Test the Material
Before cutting the full model, test:
- Power
- Speed
- Kerf
- Engraving quality
Step 5: Cut and Engrave
The laser produces the individual model components.
Step 6: Assemble
The components are assembled into the final physical model.
Don’t Forget About Laser Kerf
Precision matters in architectural model making.
When a laser cuts material, it removes a small amount along the cutting path. This is known as kerf.
For simple presentation models, the difference may be minor.
But kerf becomes important when creating:
- Slot joints
- Press-fit connections
- Interlocking structures
- Precise facade systems
Designers should test the actual material before producing the complete model.
Even materials sold at the same nominal thickness can vary slightly.
A small test joint can save an entire sheet of material.
Choosing a Laser Cutter for Architectural Model Making
Architecture studios and fabrication labs should consider more than laser power.
Important factors include:
Working Area
Architectural models can become large.
A larger bed allows designers to cut:
- Larger floor plates
- Site plans
- Landscape layers
- Multiple components simultaneously
Material Compatibility
Consider which materials the studio uses most frequently.
Cutting and Engraving
A machine capable of both allows designers to cut geometry while engraving surface details during the same workflow.
Ventilation
Proper exhaust and ventilation are essential when processing laser-compatible materials.
Always confirm that a material is suitable for laser processing before cutting it.
Workflow
Consider how easily the machine integrates with the software already used by the studio.
Where CO₂ Lasers Fit Into Architectural Model Making
CO₂ laser cutters are particularly useful for architectural models because they can process many commonly used non-metal materials.
Depending on the material and machine configuration, applications can include:
- Wood
- Plywood
- MDF
- Acrylic
- Paper
- Cardboard
- Other laser-compatible model-making materials
An architecture studio can therefore use one machine for multiple stages of model production.
For example:
Cut: walls and floor plates
Engrave: facade details
Cut: acrylic glazing
Cut: landscape contours
Engrave: roads and site boundaries
This versatility makes CO₂ laser cutting a valuable digital fabrication tool for architecture studios, schools, and makerspaces.
How OMTech CO₂ Lasers Support Architectural Model Making
OMTech CO₂ laser engraving and cutting systems can support a range of architectural and design applications, including:

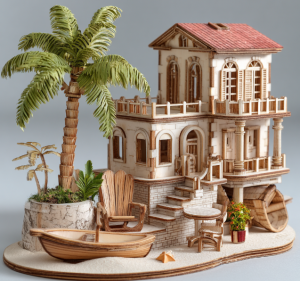

- Architectural models
- Site models
- Terrain models
- Facade studies
- Presentation models
- Urban planning models
- Interior design prototypes
- Design-school projects
With the ability to cut and engrave suitable sheet materials, designers can move from digital drawings to physical prototypes within a streamlined workflow.
For architecture schools and shared fabrication spaces, a laser cutter can also support projects across architecture, industrial design, engineering, art, and other design disciplines.
Laser Cutting Isn’t Replacing 3D Printing—and It Doesn’t Need To
3D printing is an extraordinary tool for architecture.
For complex curves, organic forms, and geometry that would be difficult to construct from flat sheets, it can be the obvious choice.
But architectural model making involves much more than reproducing complex geometry.
Architects need to explore:
- Space
- Scale
- Material
- Structure
- Facades
- Landscape
- Design alternatives
Laser cutting remains valuable because it supports these activities quickly and physically.
Perhaps the most useful modern workflow isn’t:
Laser cutting vs. 3D printing.
It’s:
Laser cutting + 3D printing + traditional model making.
Each technology solves a different fabrication problem.
And that’s precisely why, despite the rise of 3D printing, the laser cutter remains one of the most useful machines in architecture studios and fabrication labs.
